Vortex Meter / Sensor

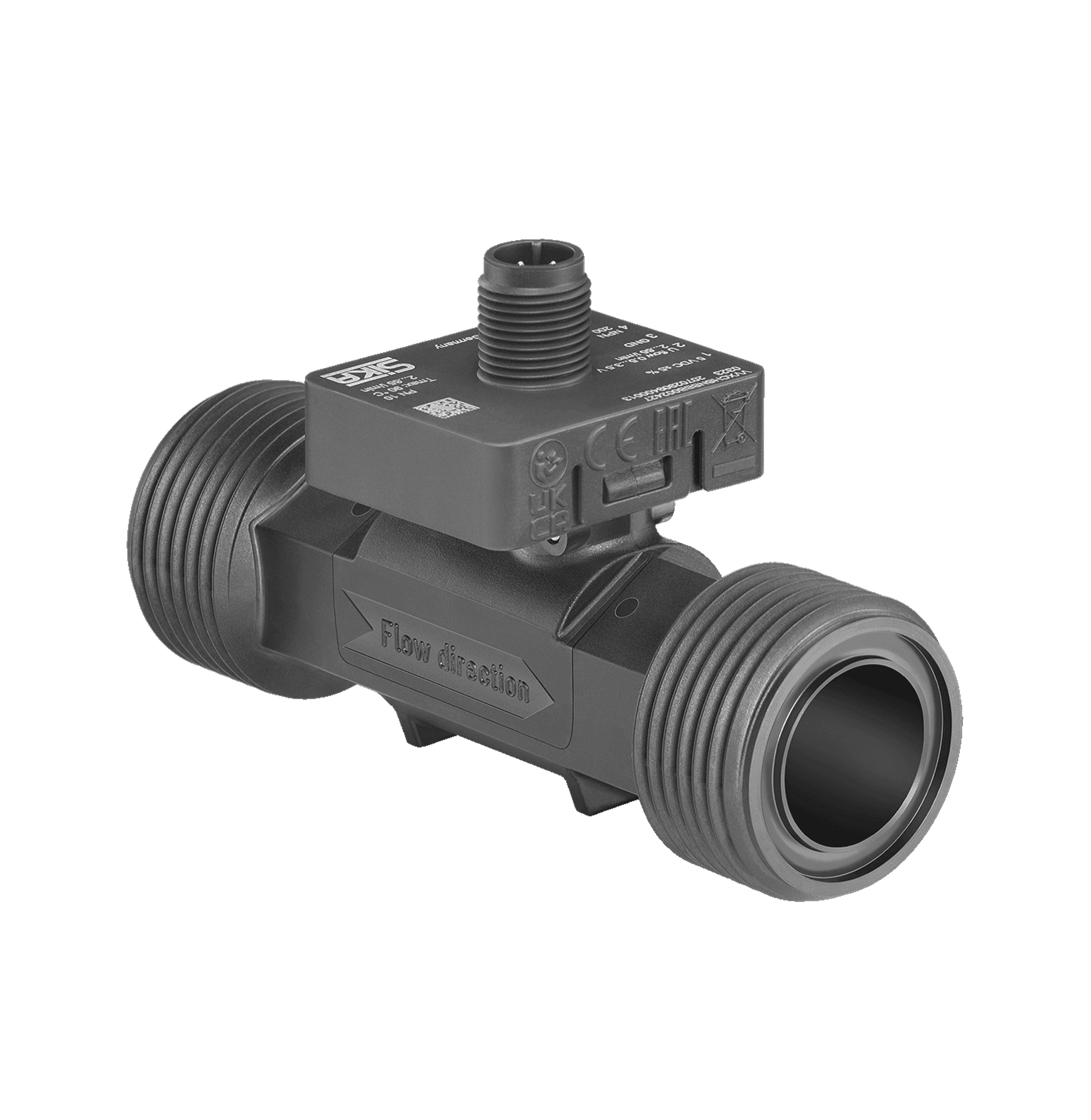

Vortex Flow Sensors - VVX Series
The SIKA VVX Series uses the Kármán vortex principle: a bluff body in the pipe generates alternating vortices whose shedding frequency directly measures flow velocity: no moving parts, no zero-point drift, no maintenance
Key Specifications
- Flow range: 2 l/min to 550 l/min across DN15 to DN40 pipe sizes
- Available in plastic, brass, and stainless steel
- Output options: frequency, 4-20 mA, 0-10 V, and IO-Link
- An optional integrated temperature sensor combines flow and temperature measurement in one unit
Key Applications
- Industrial flow measurement for water and compatible liquids
- HVAC systems
- Combined flow and temperature measurement in a single unit
Available Models
