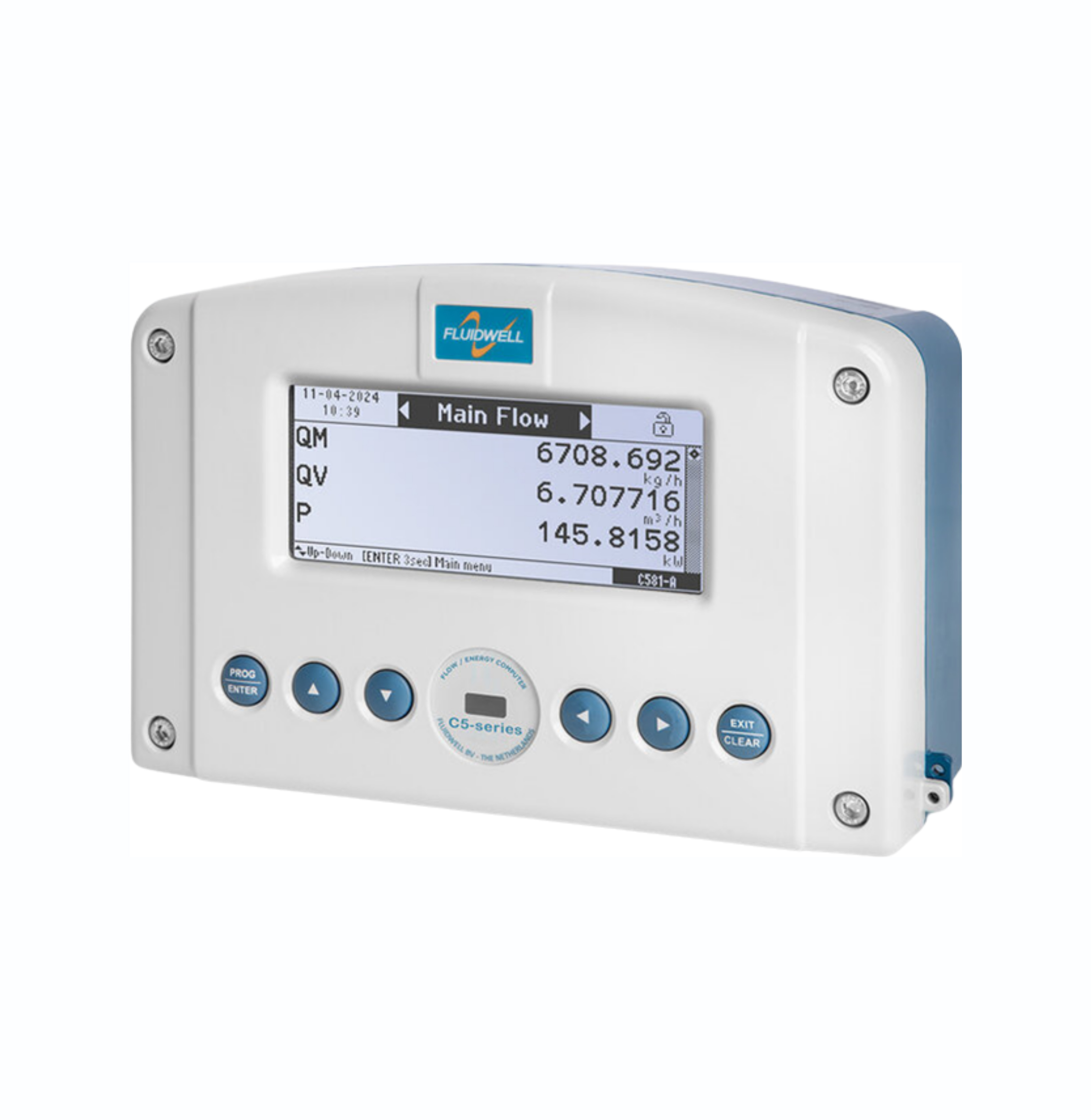

Flow Computers
Flow computers precisely measure and account for gas consumption and net flow, reducing total measurement system costs. They achieve this by improving metrology performance, reducing measurement uncertainty, and ensuring regulatory compliance.
These computers are designed for use in both safe-area and hazardous-area applications. They facilitate remote monitoring of flow-rate and totalizer data and support wireless data retransmission for enhanced connectivity.
Key Specifications
- Gas volume calculation with temperature and pressure compensation
- Data logging for survey information
- USB communication for configuration and local data extraction
- Integrated HART 7 communication protocol
- Configurable via PC with free downloadable software
- The display shows flow rate, total, measuring units and flow rate speedometer
- LED backlight
- Power: loop powered, battery or 9-27V DC
- Sensor supply: 8.2/12/24V DC
- Operational temperature: -40°C to +70°C
Key Applications
- Calculating fuel consumption
- Gas flow calculation in power plants
- Two-component blending
- On board ships for fuel consumption and power plant monitoring
