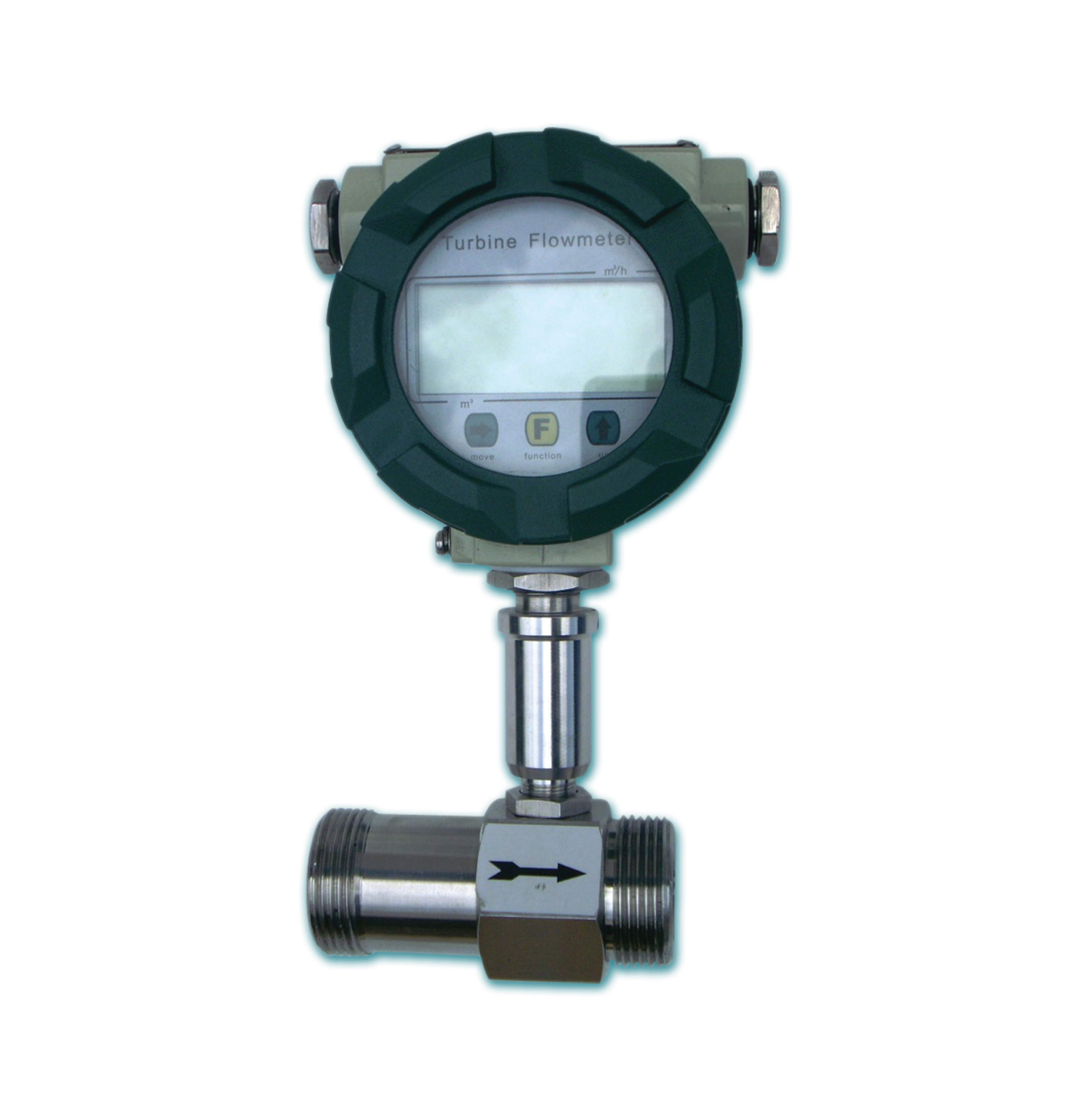

Turbine Flow Meters
For decades, industries have trusted our turbine flow meters for reliable, long-lasting measurement of the volumetric flow rate of low-viscosity liquids in pressurised closed pipes. Built on proven technology, they are widely adopted across various sectors.
The meters function by using rotating turbines placed in the fluid stream, which convert mechanical motion into readable flow rates. Measurement accuracy is dependent on the fluid's flow and velocity profiles. Constructed from SS304 and SS316, these meters are suitable for handling non-conductive liquids, such as hydrocarbons.
Key Specifications
- Line sizes from 4mm to 200mm
- Accuracy: ±1%
- Output: 4-20mA
- Power supply: Battery or 24VDC
- Direct measurement of volume and flow rate
- Long meter life and reliability
- Measurement of low viscosity liquids
- Measurement of non-conductive liquids, especially hydrocarbons
- No zero drift
- Low pressure loss
Key Applications
- Mineral oils
- Crude oils
- Alkaline fluids
- Acids
- Water
- Solvents
